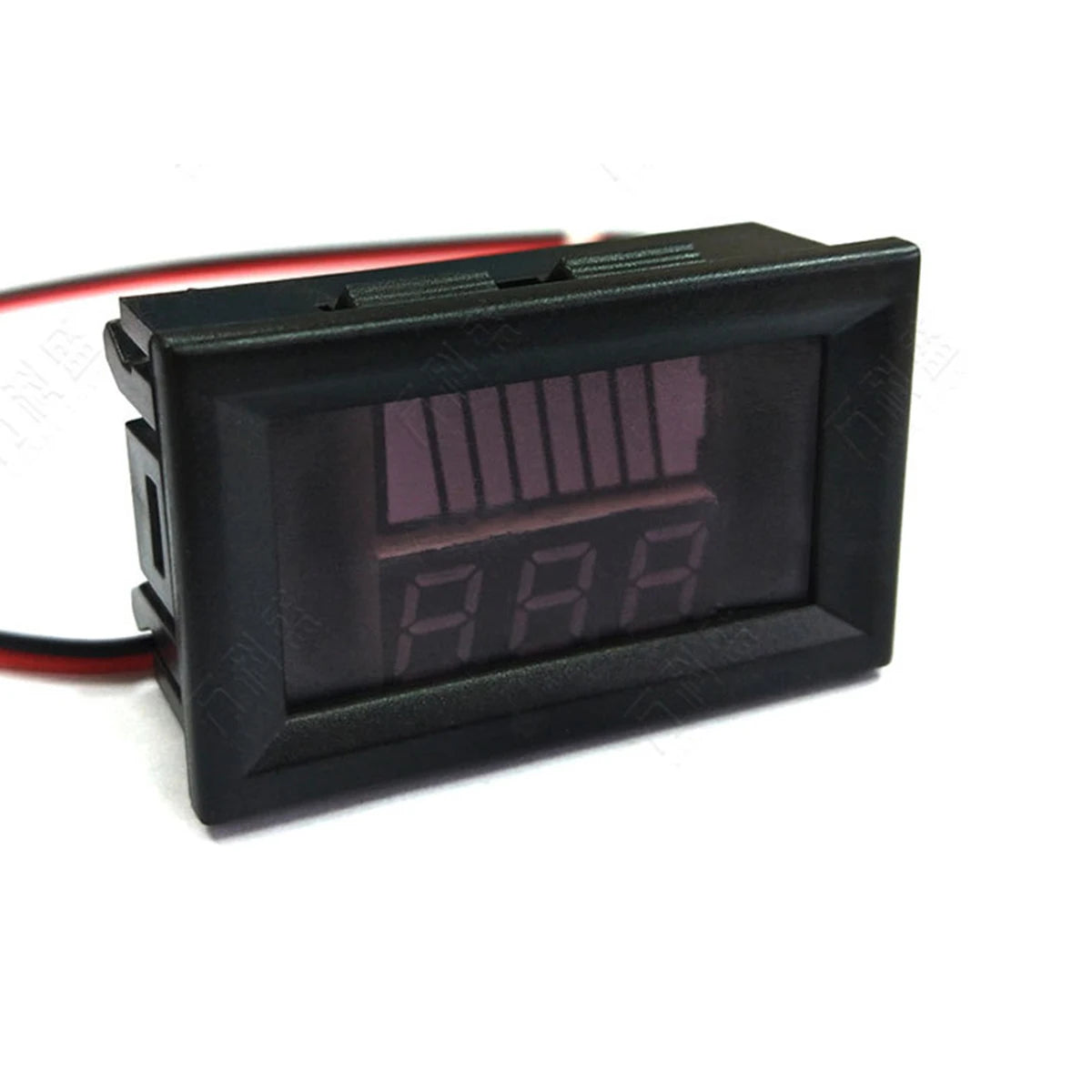

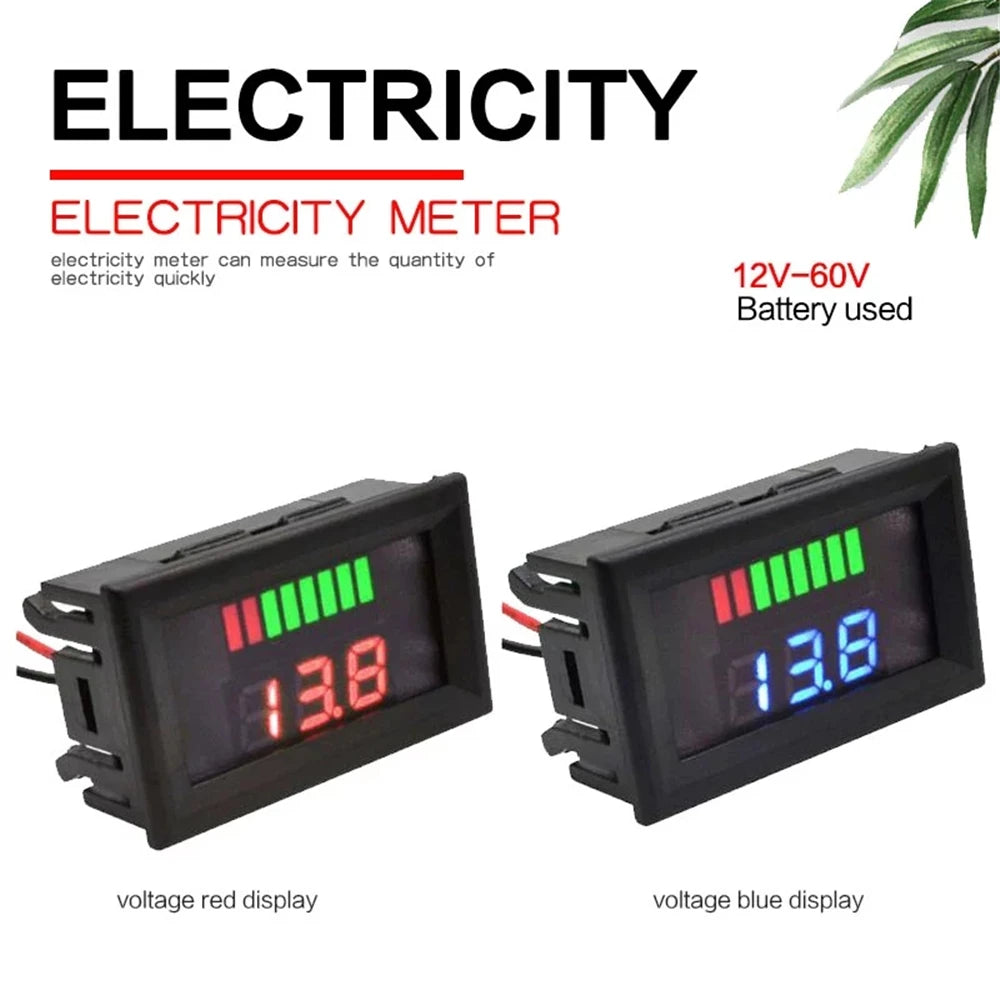

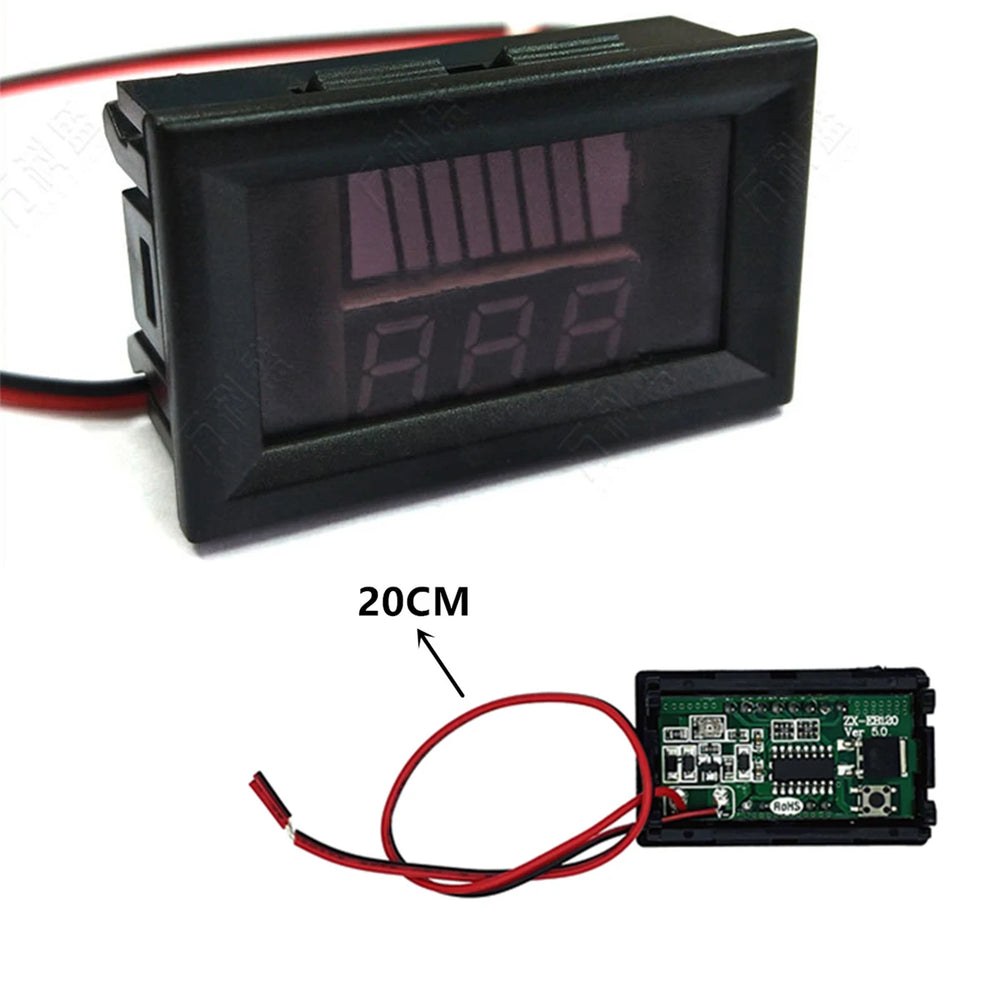

0.56'' LCD Digital Voltmeter 12V-72V Battery Capacity Indicator

Key Features

• Voltage Range — It covers 12~60V/72V ratings, matching the 12V, 24V, 60V and 72V levels listed for it.
• Eight-Level Charge Display — It shows eight power levels, from 10% to 100%, so you can see how much charge the battery holds.
• LCD Digital Readout — A 3 Bit LCD digital display shows the voltage reading on screen.
• Accuracy Class Rating — Readings carry an accuracy class of +/- 1%.

Product Specifications

• Color: Red, Blue
• Placement on Vehicle: REAR
• Dimensions: 48 × 29 × 22 mm (1.9 × 1.14 × 0.87 in)
• Weight: 25 g (0.88 oz)
• Size: 46 × 27 mm (1.8 × 1.06 in)
• Accuracy Class: +/- 1%
• Eight Power Resolution: 10%, 25%, 40%, 50%, 60%, 75%, 90%, 100%
• Working Current: 5~15mA
• Refresh Rate: 300mS/Time
• Display Type: 3 Bit LCD Digital
• Operating Humidity: 10~80%
• Working Temperature: -10~65℃

What It Is / How It Works

This LCD digital voltmeter is a compact voltage tester for car and motorcycle batteries, as its title describes. It reads voltage across the 12V to 72V ratings listed in its specifications.

Who It's For / Use Cases

Voltmeters of this type suit car and motorcycle owners who want a quick look at battery voltage before starting a vehicle. Drivers who keep a battery on a trickle charge, or who check a vehicle after a long period parked, may find a voltage reading useful. Anyone who works with 12V to 72V battery systems can use a digital voltmeter as a simple reference reading.

How to Use / Care

1. Use it to check the voltage of a car or motorcycle battery.
2. Read the voltage on the LCD display.

How to Choose

Start with the voltage range. Next, consider the display, since a numeric LCD readout is quick to scan. Finally, look at the size and weight if you want a compact tool that fits in a toolbox or glovebox.

Frequently Asked Questions

What voltage range does it cover?
It covers 12~60V/72V ratings. The listed voltage settings are 12V, 24V, 60V and 72V.

How many charge levels does the battery indicator show?
It shows eight levels: 10%, 25%, 40%, 50%, 60%, 75%, 90% and 100%.

How accurate is the voltmeter?
Its accuracy class is +/- 1%, and it refreshes the reading every 300mS.

What working conditions does it list?
It works at -10~65℃ and at 10~80% operating humidity.

How big and heavy is it?
It measures 48 × 29 × 22 mm (1.9 × 1.14 × 0.87 in) and weighs 25 g (0.88 oz).
