Pin 6189-0099 Car Connector for Toyota 1JZ 2JZ Map

Key Features

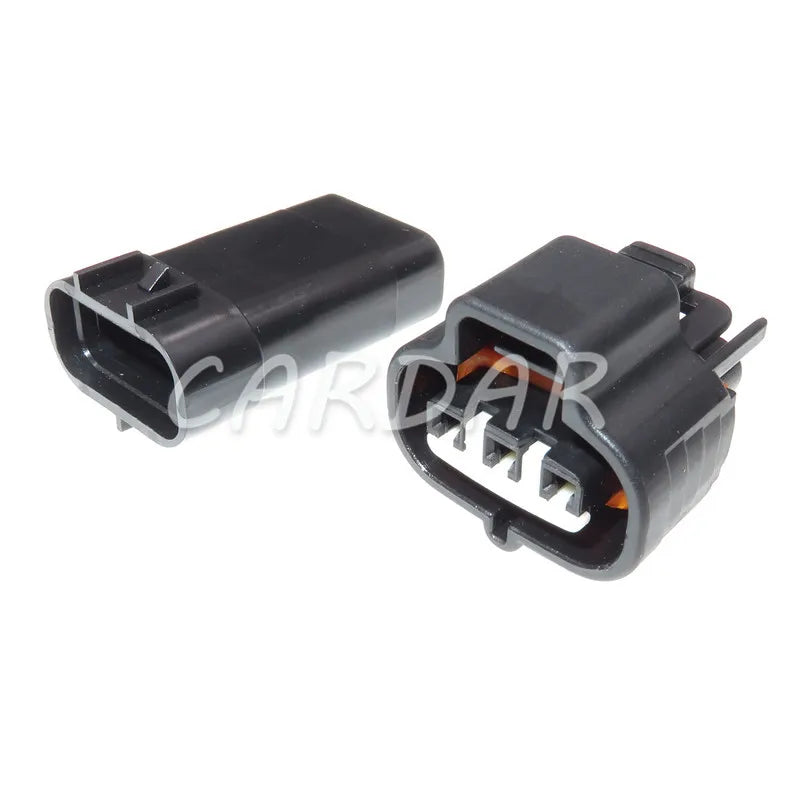

• 3-Pin Connector — This automotive connector set includes a 3-pin female and male connector housing with terminals and rubber seals, designed for engine sensor connections.
• Plastic Housing — The connector housings are made of plastic, with metal terminals and rubber seals for a secure electrical connection.
• Closed Shell — This connector features a closed shell type, helping to protect the internal contacts from debris and moisture.

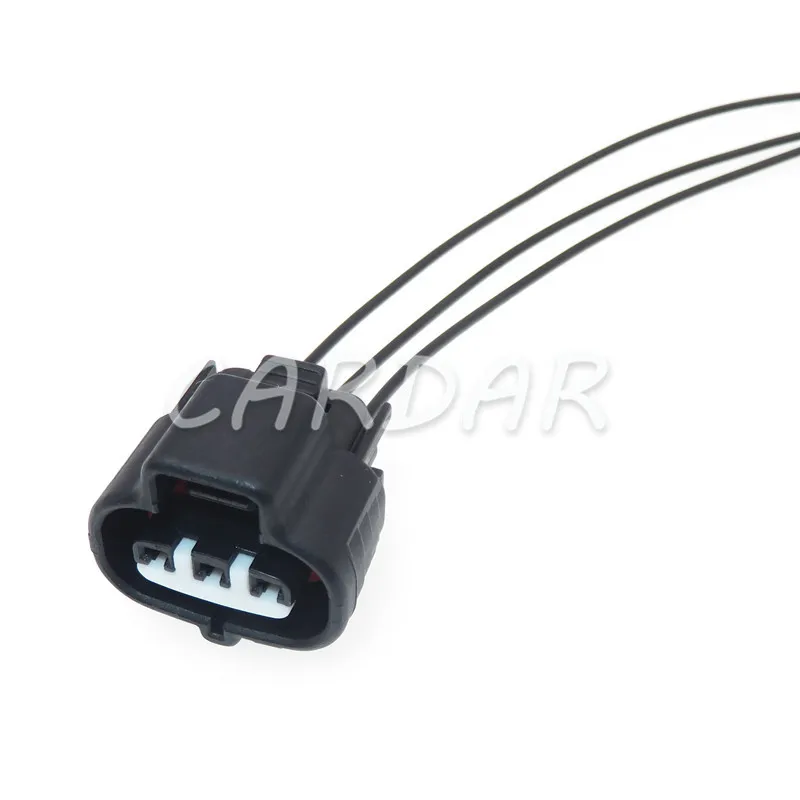

• Complete Set — The set includes one female connector with 15cm black wires, one male connector with 15cm black wires, plus additional terminals and seals.

Product Specifications

• Piece Count: 1 set
• Material: Plastic Housing, Metal Terminal, Rubber Seals
• Model: DJ7036F-2.2-11 DJ7036F-2.2-21
• Shell Type: Closed Type
• Certification: CE

What It Is / How It Works

This is a 3-pin automotive connector set, commonly used for engine sensors such as MAP sensors in Toyota vehicles. It includes both male and female connector housings, terminals, and rubber seals, along with pre-wired connectors for easy installation.

Who It's For / Use Cases

Automotive connectors like this are suited for DIY enthusiasts and mechanics who need to replace or repair engine sensor connections. They are also useful for custom wiring projects where a reliable, sealed connection is required.

How to Use / Care

1. Disconnect the vehicle battery to ensure safety while working on electrical connections.
2. Align the connector housing with the sensor pins, ensuring the keying matches to prevent incorrect insertion.
3. Press the connector firmly until it clicks into place, securing the connection.
4. Reconnect the battery and test the sensor to confirm proper operation.

How to Choose

When selecting an automotive connector, consider the number of pins, the shell type, and the material. Ensure the connector matches your vehicle's sensor and wiring requirements.

Frequently Asked Questions

What materials are used in this connector?
The connector features a plastic housing, metal terminals, and rubber seals, providing a durable and secure connection.

What is included in the set?

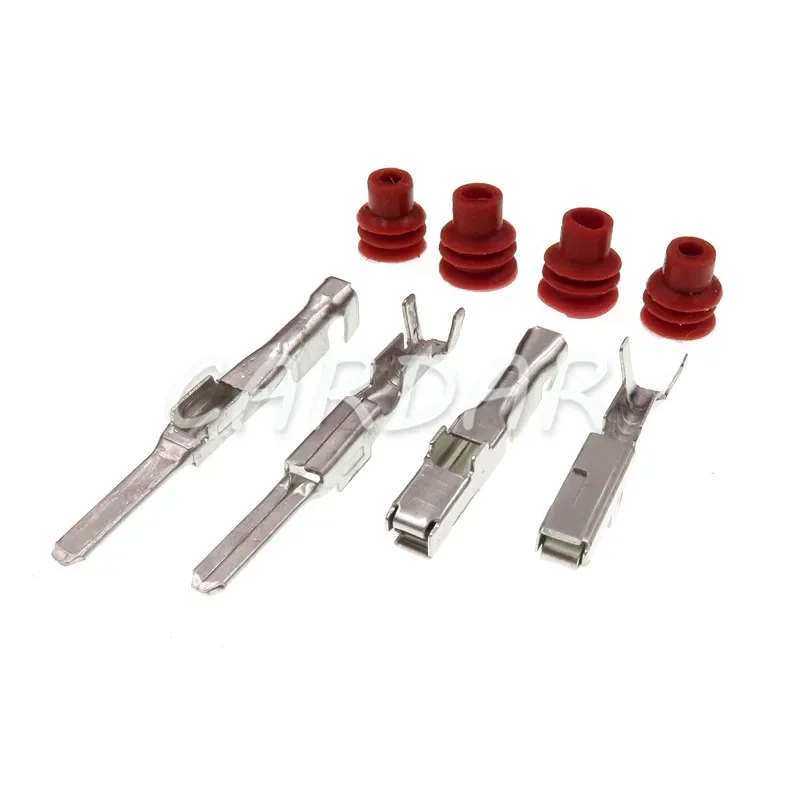

The set includes one female connector housing with insert, one male connector housing with insert, three female terminals, three male terminals, three rubber seals, one female connector with 15cm black wires, and one male connector with 15cm black wires.

Is this connector suitable for engine sensors?
Yes, this 3-pin connector is designed for automotive applications such as MAP sensors, and it is commonly used in Toyota vehicles with 1JZ and 2JZ engines.

Does this connector come with wires?
Yes, both the female and male connectors come with 15cm black wires attached, making installation easier.
