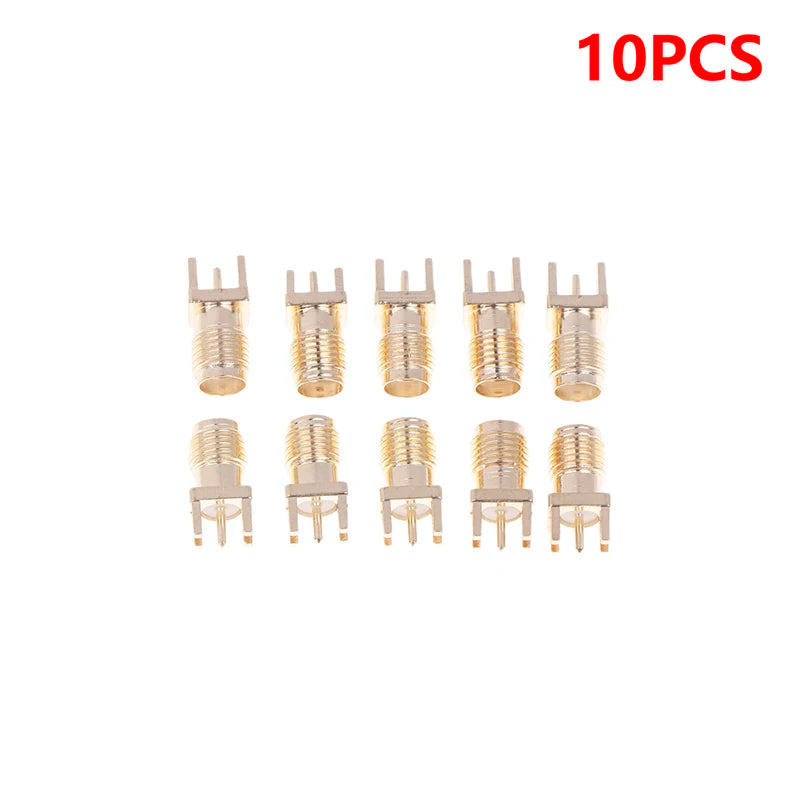

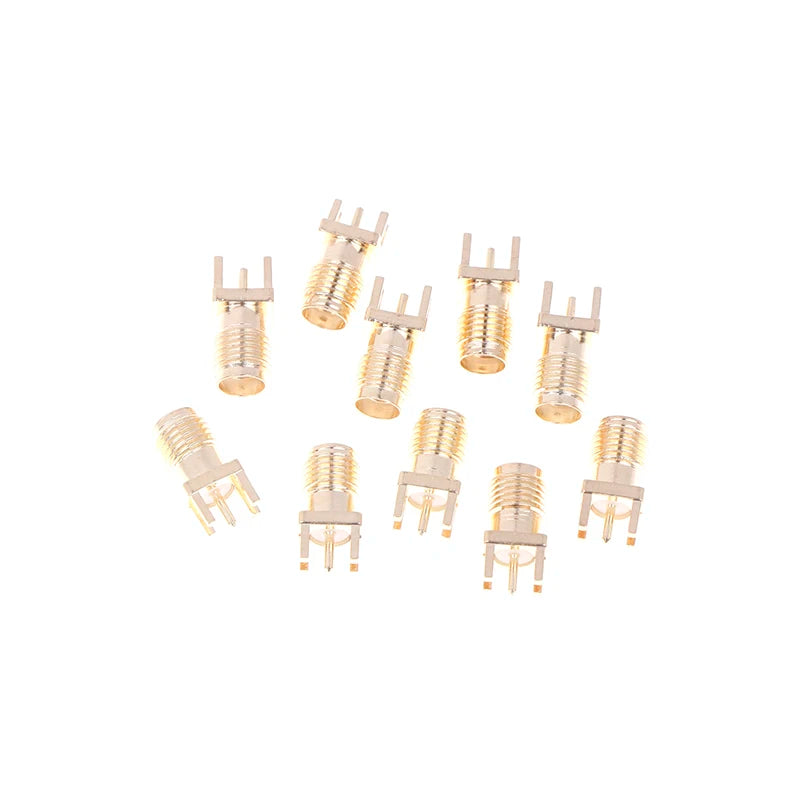

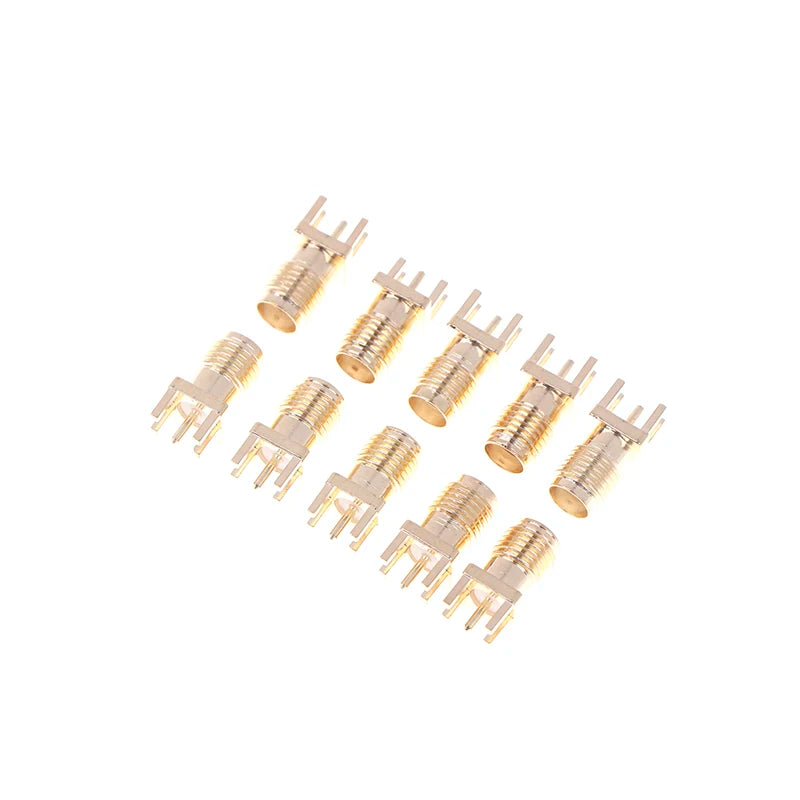

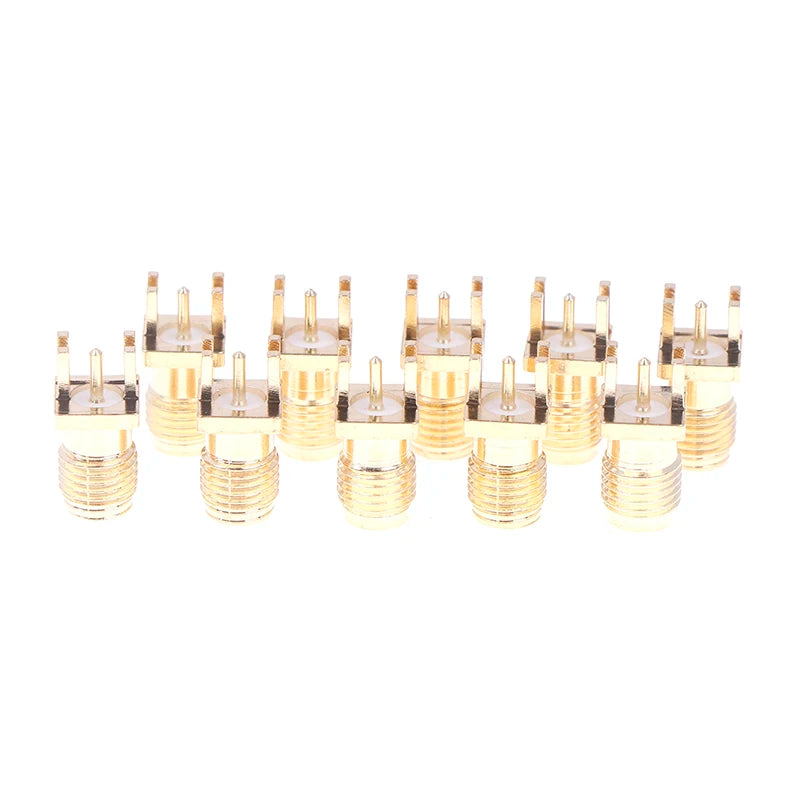

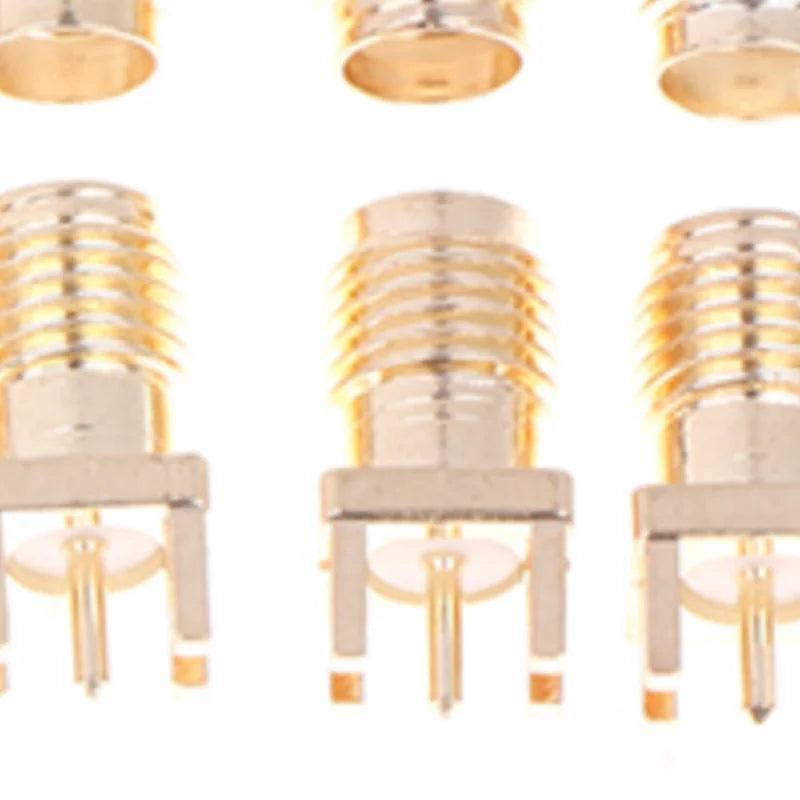

SMA Female Jack PCB Edge Mount Adapter Connector | 10-Pack Gold Plated RF Coaxial Connectors

These SMA female jack PCB edge mount solder adapters give you a reliable connection for your RF projects. Each connector features gold-plated contacts for consistent signal transfer and corrosion resistance. Designed for edge mounting on PCBs, they simplify your soldering work and save space on your board.

Building or repairing radio frequency equipment? These adapters connect coaxial cables to your circuit board with a secure solder joint. The compact size fits tight spaces inside enclosures, and the gold plating protects against oxidation over time. Whether you are working on antennas, wireless modules, or test equipment, these connectors hold up to repeated use.

Each connector measures 1.5 cm by 1 cm, making them easy to handle during assembly. The metal body provides durability, and the SMA female interface accepts standard SMA male plugs. With ten pieces in one pack, you have extras for prototypes, repairs, or multiple projects.

These adapters work with Sony PlayStation VITA and other devices that use SMA connections. The edge mount design aligns with the board edge for a low-profile fit. Solder them directly to your PCB traces for a clean, permanent connection that maintains signal integrity.

Key Features and Benefits

- Gold-plated contacts that resist corrosion and maintain stable signal transmission over time

• Compact edge mount design that saves PCB space and fits into tight enclosures

• SMA female interface that accepts standard SMA male plugs for versatile connectivity

• Metal body construction that provides durability and reliable mechanical support

• 10-piece pack that gives you spare connectors for multiple builds or replacements

• Small footprint of 1.5 cm by 1 cm that simplifies layout planning on your board

Who Is This For

- Hobbyists building or repairing RF circuits, antennas, and wireless transmitters

• Technicians servicing Sony PlayStation VITA or other devices with SMA connections

• Engineers prototyping RF modules who need reliable edge mount connectors

• Makers working on IoT projects that require stable coaxial connections

Usage Scenario

Mark was troubleshooting a weak Wi-Fi signal on his custom router build. The original connector had oxidized and caused intermittent dropouts. He swapped in one of these gold-plated SMA adapters, soldered it to the PCB edge, and reconnected the antenna. The connection held firm, and his signal strength returned to normal. He now keeps the remaining nine adapters in his parts drawer for future repairs.

Micro Comparison

Standard through-hole SMA connectors take up more board space and require drilling. These edge mount adapters sit flush with the PCB edge, reducing clutter and simplifying your layout. The gold plating also gives you better corrosion resistance than nickel-plated alternatives, making them a reliable choice for long-term projects.

Specifications

- Material: Metal

• Connector Type: SMA Female Jack

• Mounting Style: PCB Edge Mount

• Contact Plating: Gold

• Body Color: Gold

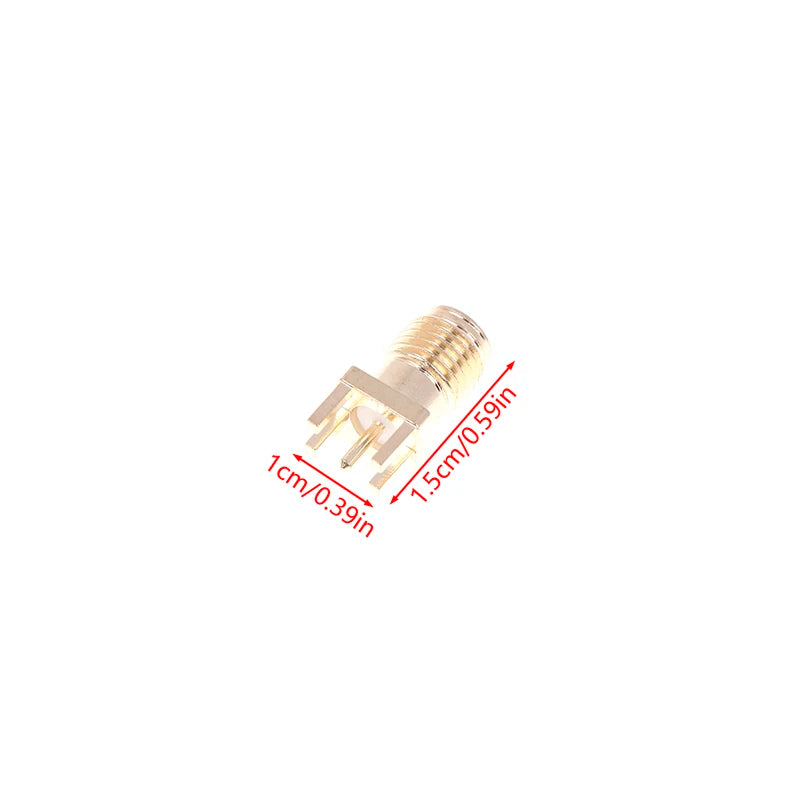

• Size: 1.5 cm x 1 cm / 0.59 in x 0.39 in per connector

• Quantity: 10 pieces per pack

• Compatible With: Sony PlayStation VITA and standard SMA male plugs

Package Includes

- 10 x SMA Female Jack PCB Edge Mount Solder Adapter Connectors

Why You Will Love It

You get ten gold-plated connectors in one pack, so you always have spares for your RF projects. The edge mount design keeps your PCB layout clean and saves valuable board space. Each adapter solders on quickly and gives you a stable connection that lasts.

Questions and Answers

Question: Can I use these connectors for antenna projects?

Answer: Yes, these SMA adapters work well for connecting antennas to RF circuits and modules.

Question: Do these fit standard SMA male plugs?

Answer: Yes, the SMA female jack accepts standard SMA male connectors.

Question: Are these adapters compatible with Sony PlayStation VITA?

Answer: Yes, they are designed to work with PlayStation VITA and similar devices using SMA connections.

Question: What is the size of each connector?

Answer: Each connector measures 1.5 cm by 1 cm, which is about 0.59 inches by 0.39 inches.

Question: Is the gold plating real gold?

Answer: The contacts are gold-plated for corrosion resistance and reliable signal transfer, but they are not solid gold.

Question: How do I mount these on a PCB?

Answer: Solder the connector directly to the edge of your PCB using the provided solder pads.

Question: Can I use these for 50 ohm RF systems?

Answer: Yes, these SMA connectors are commonly used in 50 ohm RF applications.

Question: Do I need any special tools to install them?

Answer: No, a standard soldering iron and solder are all you need for installation.
